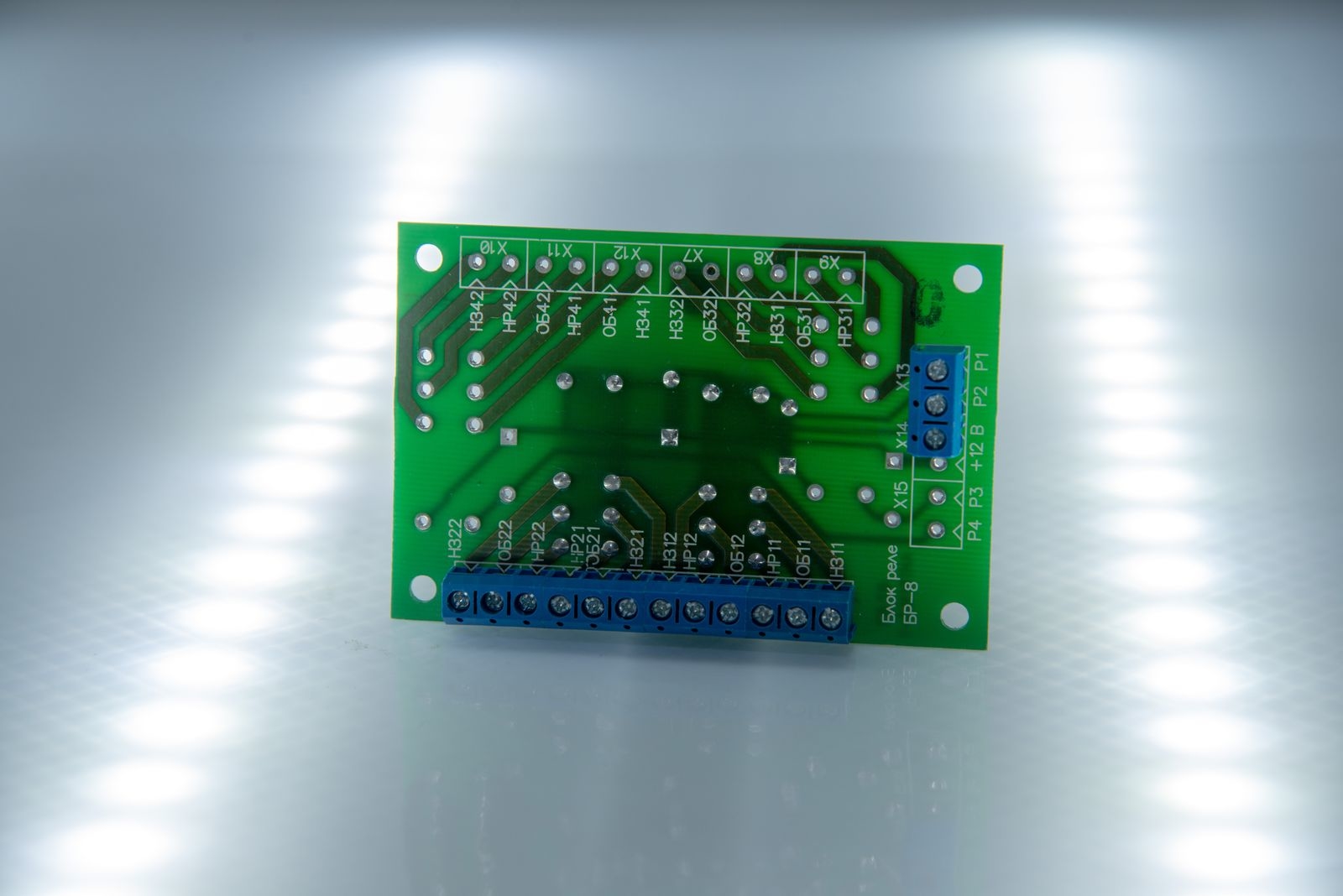

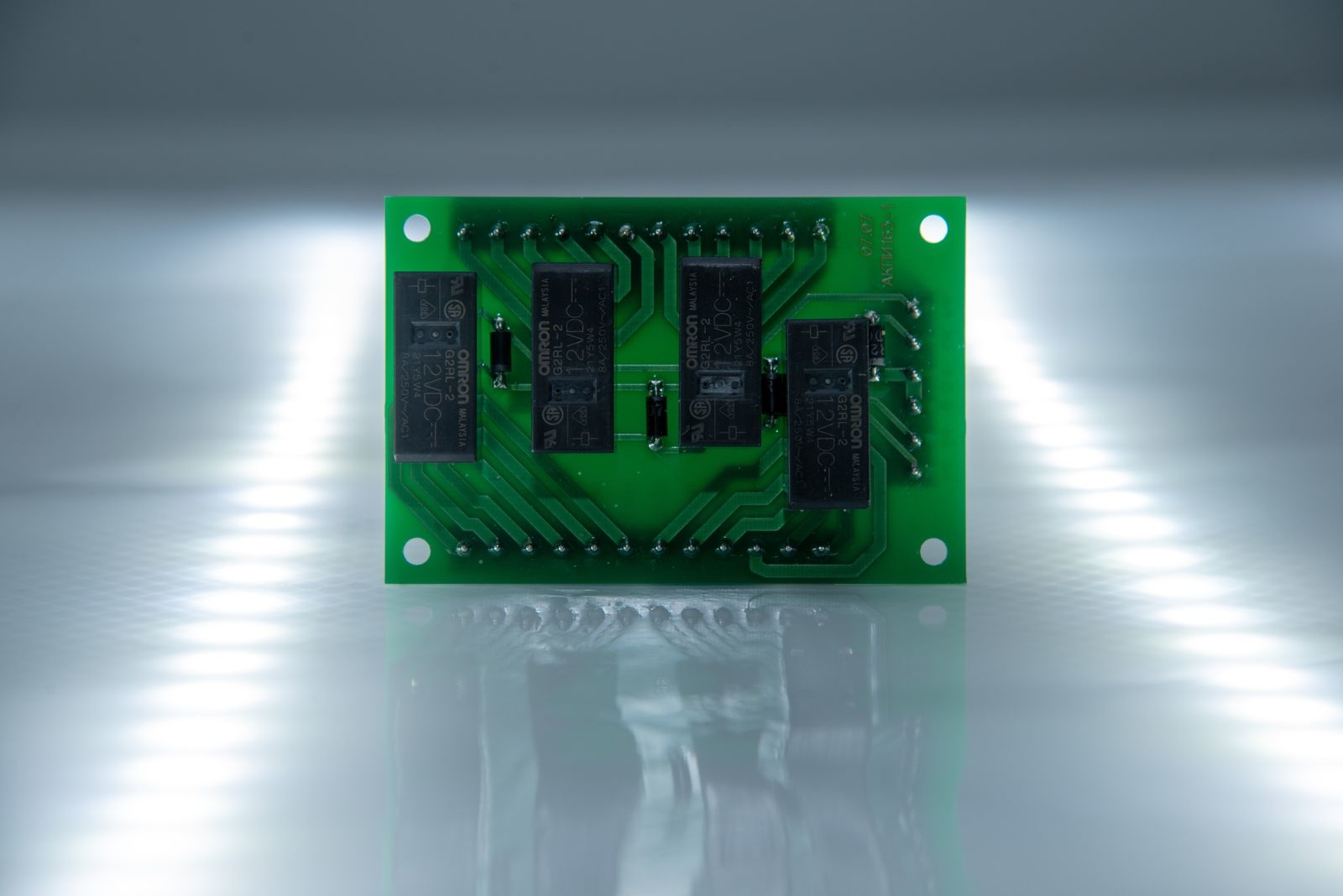

Relay block

Relay blocks BR-8/2 and BR-8/4 are intended for use as part of the Varta-1 fire control panel manufactured by ALC "SCB"ELECTRONMASH" and are used to control external devices in automation systems.

The relay block can be supplied as a separate component or installed in the device.

SPECIFICATIONS

Number of relays:
ВR-8/2 - two groups of switching contacts;
BR-8/4 - four groups of switching contacts.

Maximum switching voltage 48 V AC, 60 V DC.
Maximum switching current 8A.
The operating voltage of the relay is 12 V.
The operating current of each relay is not more than 35 mA.
