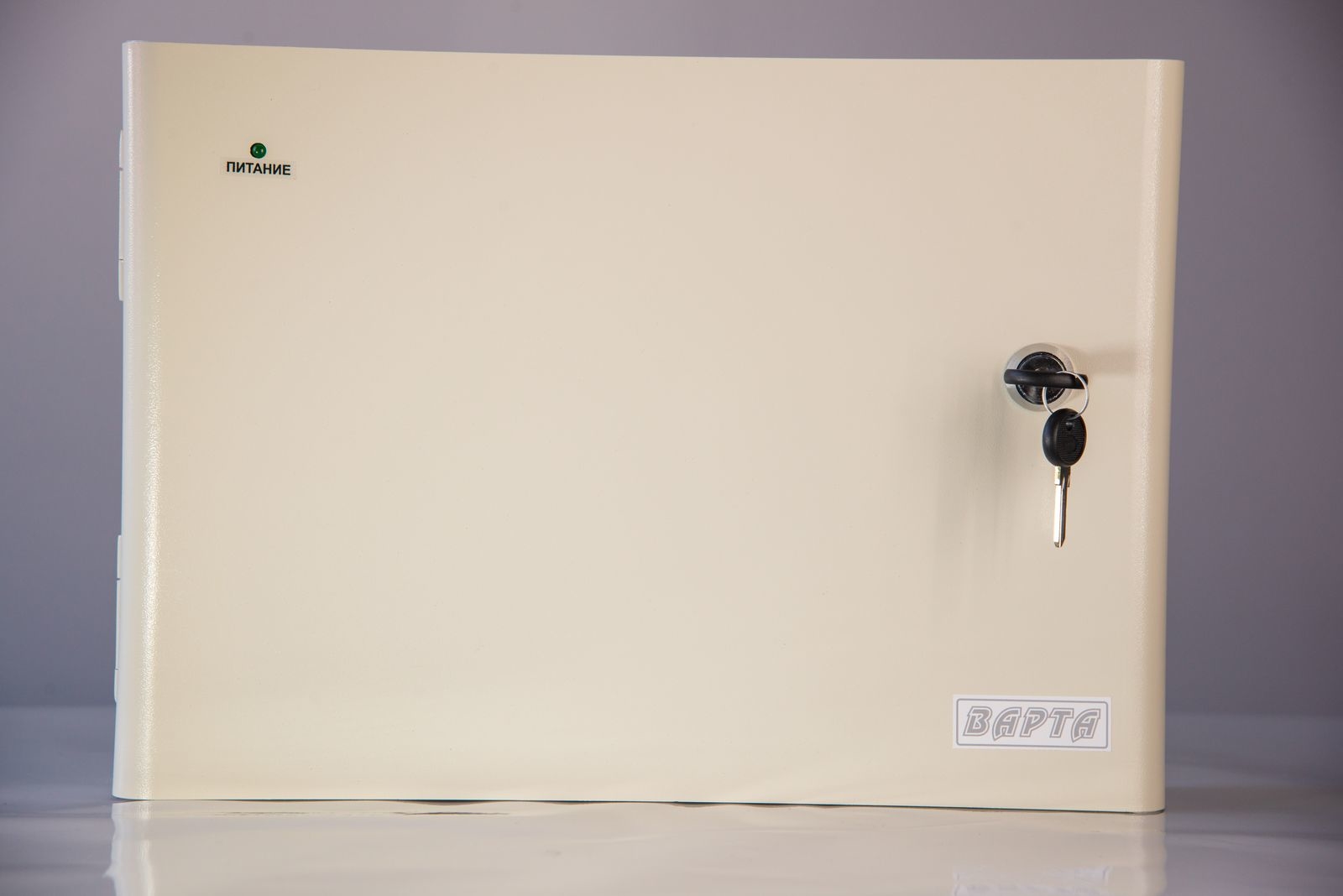

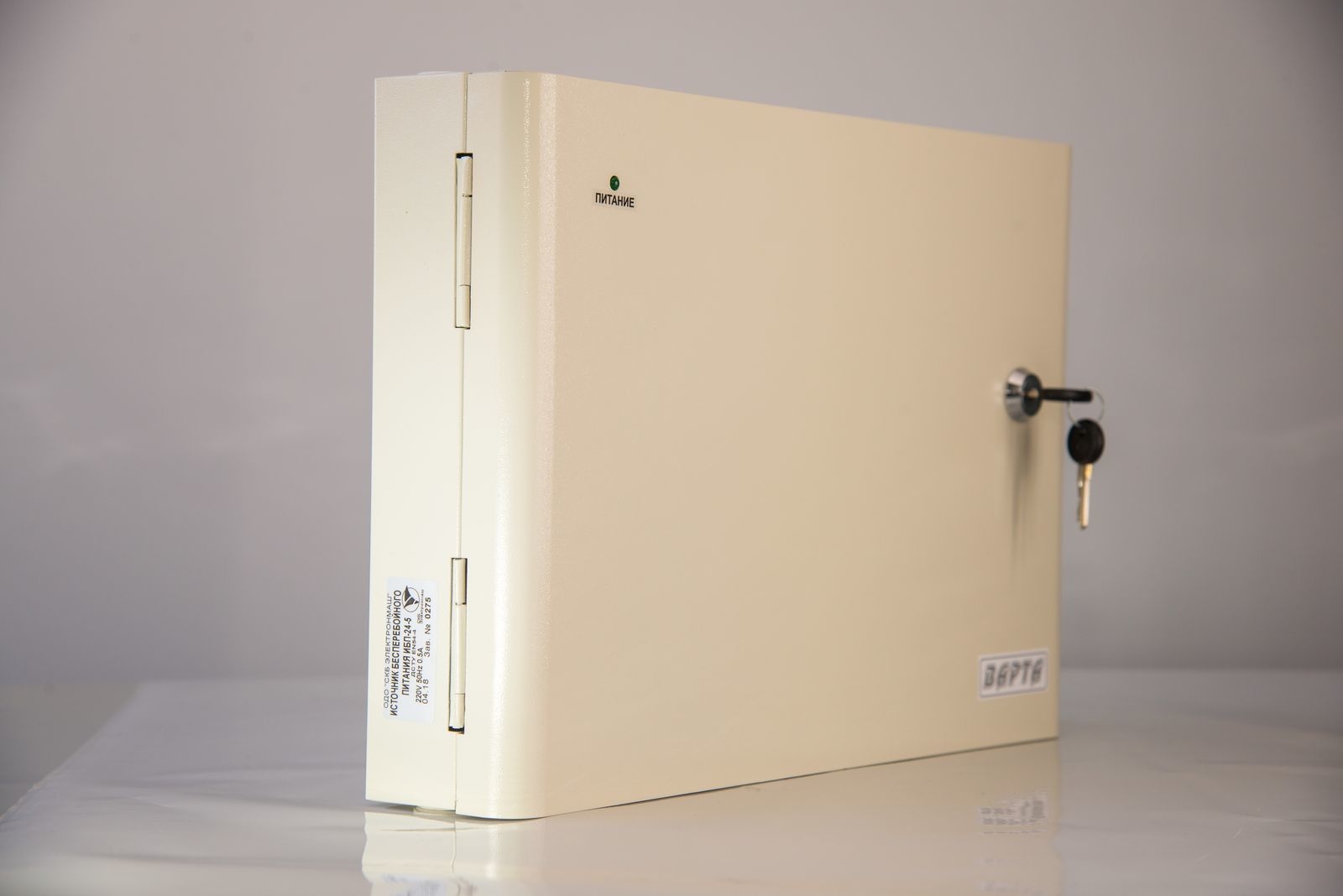

Uninterruptible power supply
ІВР-24-3, ІВР-24-5
ІВР-24 uninterruptible power supply is designed to power fire alarm and automation devices, video surveillance and emergency lighting with a constant voltage of 24 V. When the 220 V voltage disappears, the automation switches the power supply on the battery, providing uninterrupted power. This device converts 220V AC from the mains into 24V DC, providing uninterrupted power any device with a 24V DC power supply of 3 A or 5 A (depending on the version). This device has high-quality protection against overcharging and overdischarging the battery. The battery is charged to 80% of its nominal capacity in 24 hours and to 100% in the next 48 hours. The device has a fault relay output.
Brief technical specifications
- Output voltage (29.0 ± 0.5) V DC.
- Load current
ІВР-24-3 no more than 3 A;
ІВР-24-5 no more than 5 A. - Overall dimensions (mm) 362x260x82.
- Оperating mode is 24/7 continuous.
The device is designed for indoor use. ІВР-24 meets the requirements of EN54-4 (the declaration of conformity is posted on the company's websitel).
